PX4 Navigaition LED Controller Loghts with RGB LED Strip for APM Pixhawk

Our Price

19.90

Inc. VAT

Seen it cheaper?

Availability
In Stock
Ships in 1-2 Days
SKU MAVled
Quantity

Purchase this product now and earn 19 Points!



Description

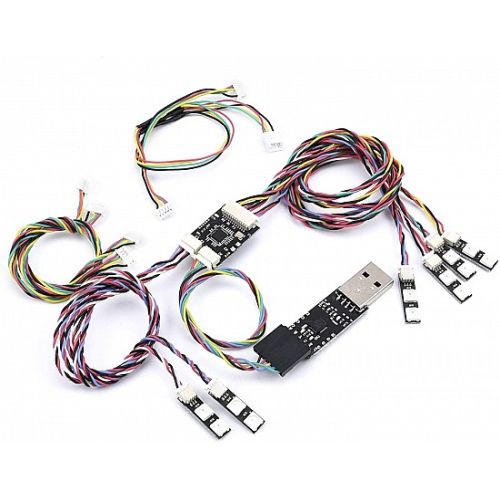

The LED Controller includes a controller board, 6 sets highlight LED strips and one USB to UART module. It is compatible with any flight controller with ardupilot or PX4 firmware like Pixhawk serial, APM serial, Pixracer, NAVIO2, PXFmini etc. It is compatible with Mavlink 1 and Mavlink 2

The front 2 LEDs (F1 and F2) show the orientation of the aircraft and get solid when the aircraft arm, breathe when disarm. The color is changeable via the configurator
The rear 2 LEDs (R1 and R2) show the status of the aircraft(GPS, RC failsafe, low battery, critical low battery, flight mode changing). Refer to the table below for more information about the aircraft status
Other 2 LEDs (F3 and F4) show solid color. The color is changeable via the configurator
All LEDs can Turn on/off via one of the Ch6 to Ch16
Aircraft status LED (R1 and R2)states

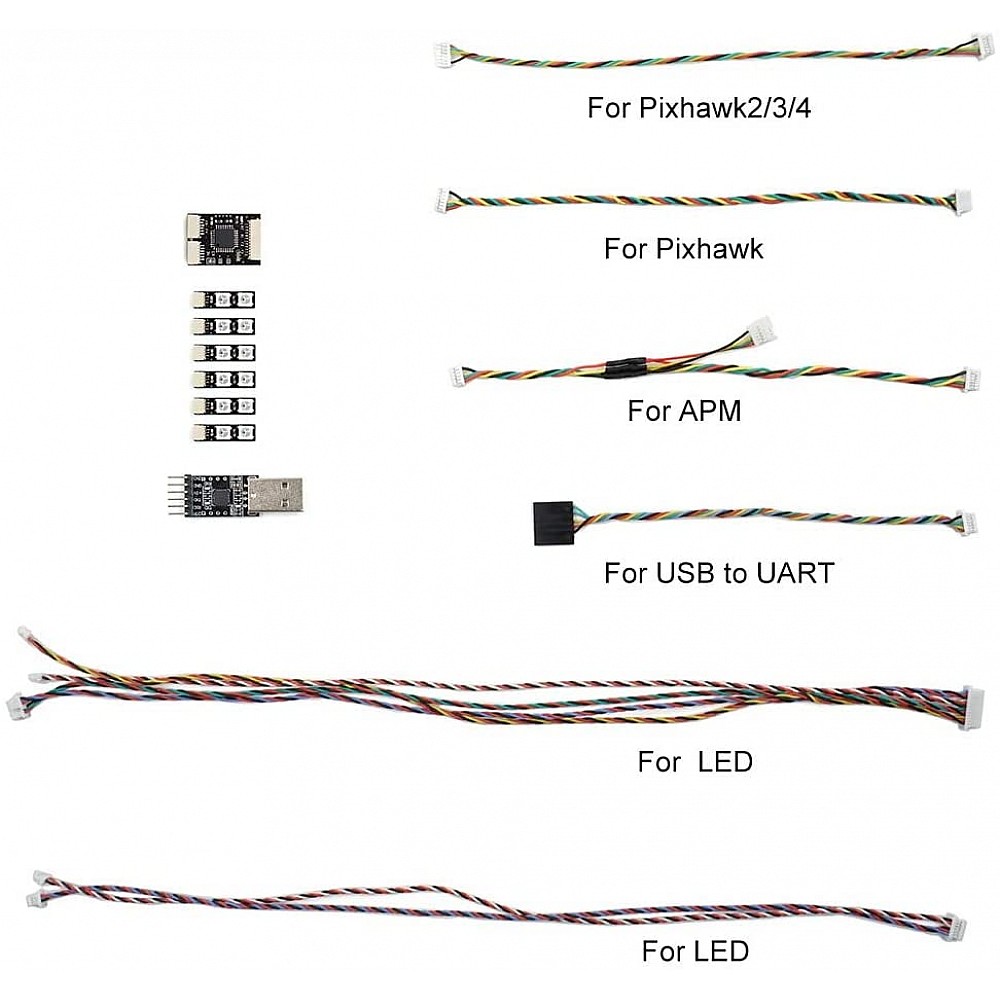

Package included:

  • 1 x LED controller
  • 6 x RGB LED strip
  • 1 x USB to UART module
  • Stickers
  • Cables
  • User manual

Color
Blinking/solid
Description of the state
green
Blinking slowly
GPS locked
blue
Blinking slowly
GPS not lock
yellow
Blinking quickly
Low battery
pink
Double blinking
RC failsafe
red
Blinking quickly
Critical low battery
pink and yellow
Blinking alternatively
RC failsafe and low battery
pink and red
Blinking alternatively
RC failsafe and Critical low battery
white
Blinking once
Flight mode changing
